Boat Guard
Boat Guard
An End To Boat Switch Problems
Barantech’s Boat Guard marine switch is designed to solve common switching issues on boats, offering a durable and elegant alternative to mechanical pushbuttons. It features interchangeable relay modules for maximum flexibility.

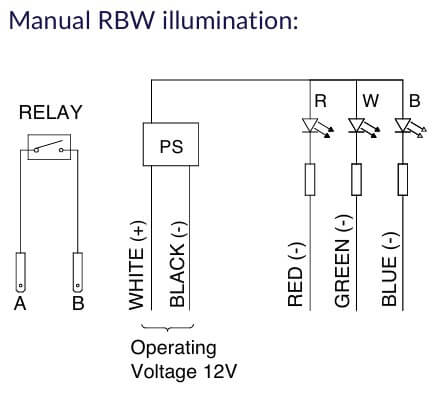

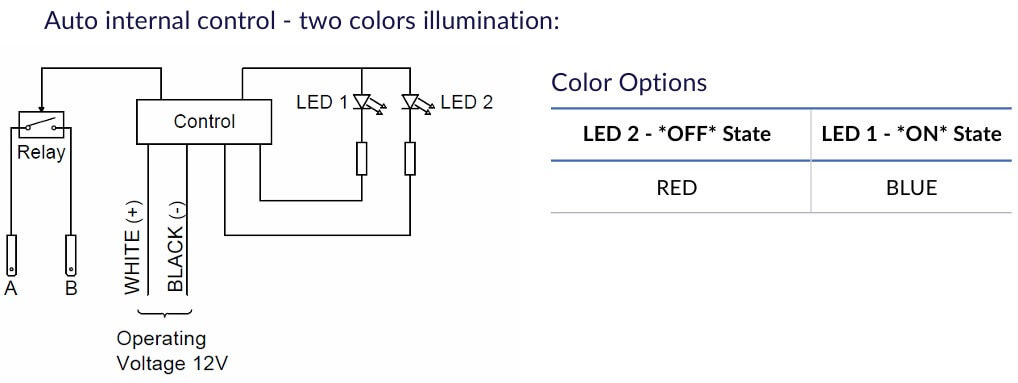

+ Electrical Connection

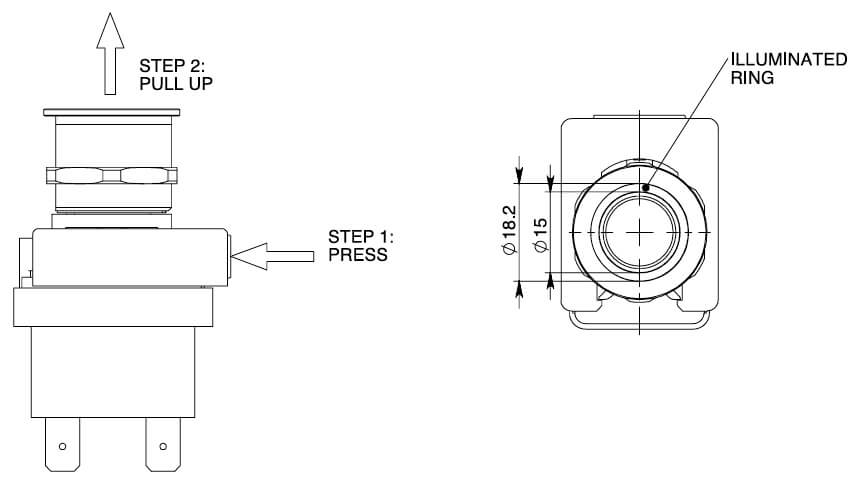

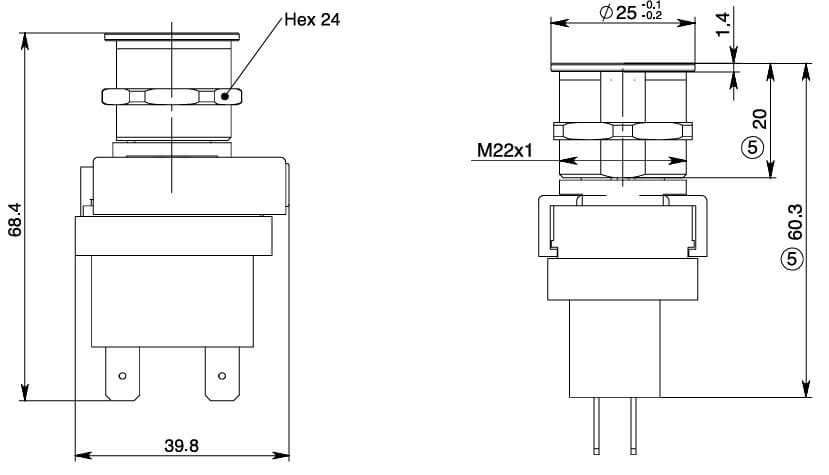

+ Mechanical Drawing
Electrical Data
Switch Function
Latching / Momentary / Timed
Operation Voltage
12V DC, 0.2A
Relay Rated Voltage
12V AC/DC
Relay Rated Current
20A max
Mechanical Data
Housing Materials
Stainless Steel
Actuation Force
3-7 N
A,B Connection
Quick Connect Terminal Mates with Fast 250
Connection
22 AWG Wires, Length 300+_20mm
Environmental Data
Operating Temperature
-15°C to +55°C
Storage Temperature
-40°C to +75°C
IP Rating
IP67
Key Characteristics
Unmatched Durability
Stainless steel or anodized aluminum housing options for an ultra-rugged design.
Effortless Installation
Snap-on relay module for quick setup.
Vivid Illumination
Tri-color RBW (Red, Blue, White) ring illumination for captivating visual appearance.
Reliable and Sealed
No moving parts, completely sealed against the elements.
Enhanced Touch Activation
Operate by hand, gloves or tools with touch-activated functionality.
Built for the Elements
Unaffected by water, salt accumulation, UV rays, ice, humidity, extreme temperatures as well as shocks and vibrations.
