Windlass switch
Windlass switch
Control with Confidence, Anywhere, Any Way
Easily raise or lower your anchor with a marine-grade, reliable switch for winch or windlass, designed for wet hands, foot, gloves and harsh marine conditions. Durable, intuitive, and ready to integrate to any helm or deck — for safe and confident anchoring every time. This switch features interchangeable relay modules for maximum flexibility.

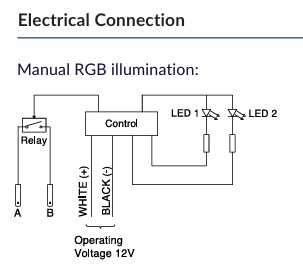

+ Electrical Connection

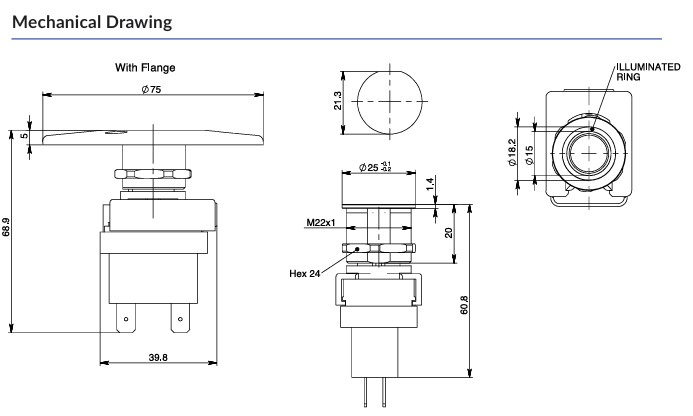

+ Mechanical Drawing
Electrical Data
Switch Function
Momentary
Operating Voltage
12V DC, 200mA
Relay Rated Voltage
12V DC
Relay Rated Current
20A max
LED Color
Red/Blue
Each LED current consumption
&max. 20 mA
Mechanical Data
Housing Materials
Stainless Steel 316
Flange Material
Stainless Steel 316
Relay Box Material
Polycarbonate
Switch Plastic Parts
PA66 Black Color
Actuating Force
3-7 N
A, B Connection
Quick Connect Terminal
Connection
22 AWG Wires , Length 300 ±20mm
To be Completed by Flat Tapping Screw 6-5/8 (qty.3)
Environmental Data
Operating Temperature
-15°C to +55°C
Storage Temperature
-40°C to +75°C
IP Rating
IP67 K
Key Characteristics
Unmatched Durability
Stainless steel housing for an ultra-rugged design.
Effortless Installation
Snap-on relay module for quick setup.
Vivid Illumination
Red or Blue ring illumination for captivating visual appearance.
Reliable and Sealed
No moving parts, completely sealed against the elements.
Enhanced Touch Activation
Operate by hand, foot, gloves or tools with touch-activated functionality.
Built for the Elements
Unaffected by water, salt accumulation, UV rays, humidity, extreme temperatures as well as shocks and vibrations.
